Meet GridCore One

The only
lap timeryou need.

Precision lap timing, a customizable race dashboard, telemetry coaching and video with overlay. One compact device. Zero post-session chores.

Request early access Explore the system

10 Hz GPSmillisecond lap timing
2× CAN+ Bluetooth
100 Hz+ loggingraw CAN data
4G / LTECloud sync
Included camera+ live overlay

Everything in one box

01 / One device

Less kit. More driving.

GridCore One replaces the usual stack of lap timer, dash, logger, camera controller and sync workflow with one motorsport-ready system.

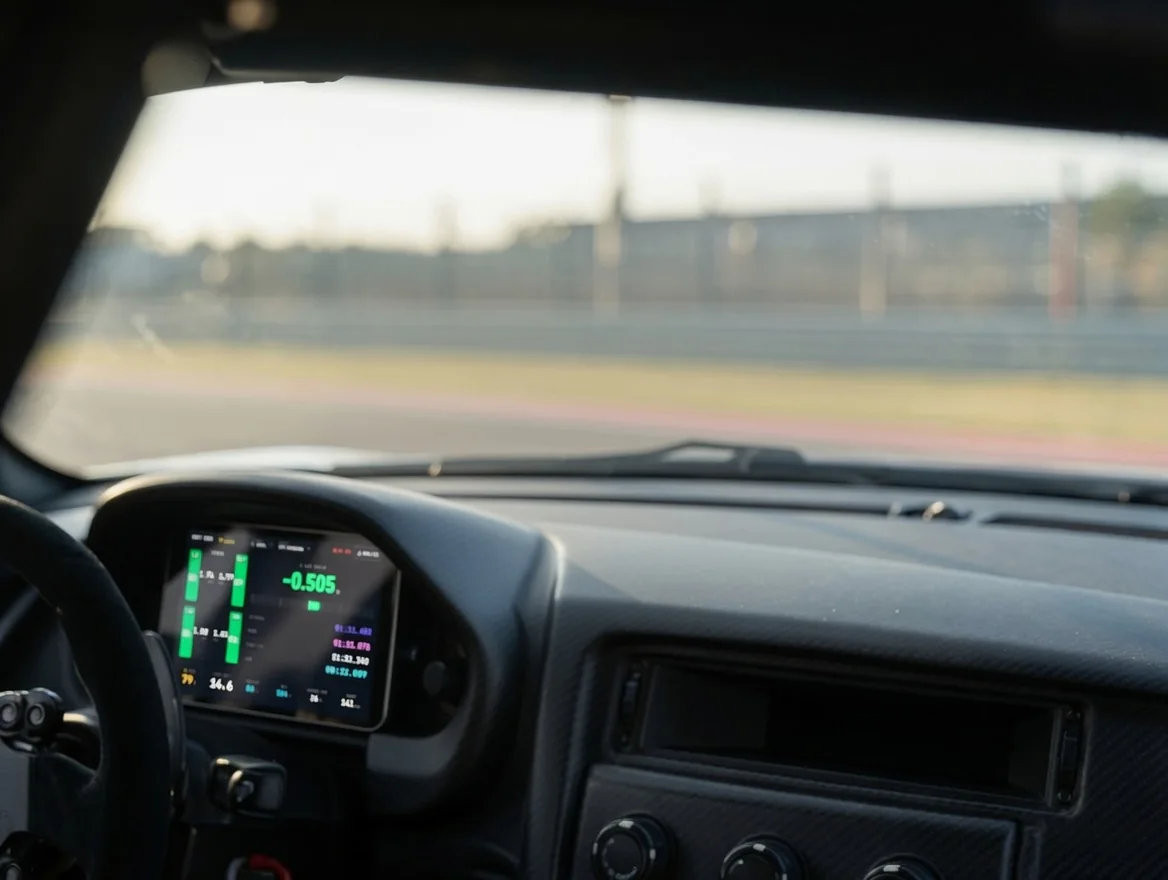

GridCore One integrated into the dashboard

Built around your cockpit

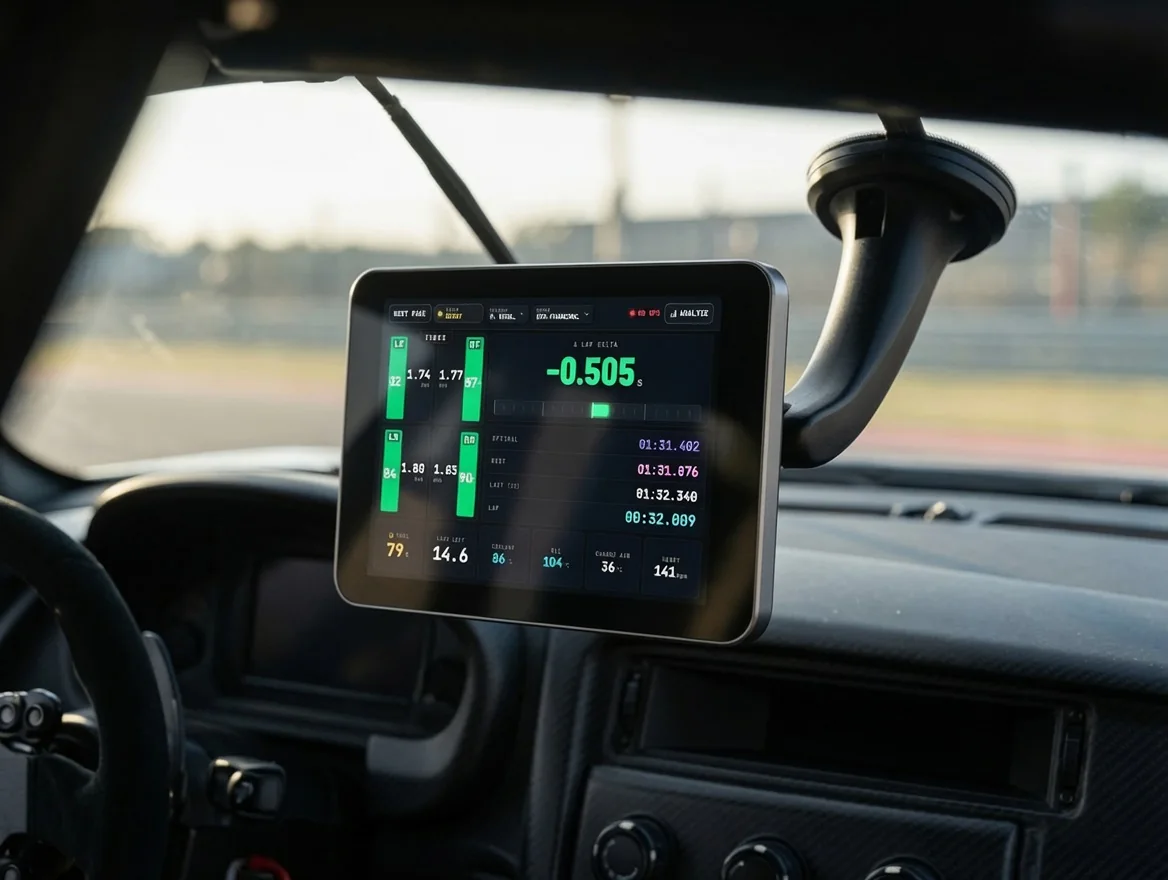

Dash or windscreen.
Your call.

A compact all-in-one unit with flexible mounting. Run it standalone, add optional power, or connect CAN to unlock the car’s full data stream.

Every connection is optional. It runs on its own battery.
One cable into the OBD2 port brings power and the car’s data.
Add CAN or Bluetooth sensors for even more.
Camera mounted separately, wherever you want.

Display: 7" touchscreen, 1280 × 800
GPS: Precise multi-constellation GNSS, up to 2ms precision
Car data: OBD2 and 2× CAN (CAN FD)
Wireless: Bluetooth LE and Wi-Fi
Mobile data: Built-in 4G / LTE
Camera: Included, 1080p at 50 fps, records with overlay
Power: One cable from OBD2, or the built-in battery
Data out: MoTeC .ld, cloud sync, CSV

02 / Precision timing

Every tenth.
Exactly where it went.

Sub-meter GPS logging with automatic track and direction detection, live sectors and an optimal lap built from your best performance.

No track selection required - just drive. Even new configurations and reverse direction are picked up automatically.

8,000+racing venues

~0.01 sfrom transponder in tested laps

03 / Coaching & telemetry

Data that tells
you what to do next.

Review laps as soon as you stop. Compare speed, inputs and any custom channel by distance, isolate sectors, inspect your racing line and turn differences into the next lap’s plan.

GRIDCORE ANALYZECompare by distance

01 / 05

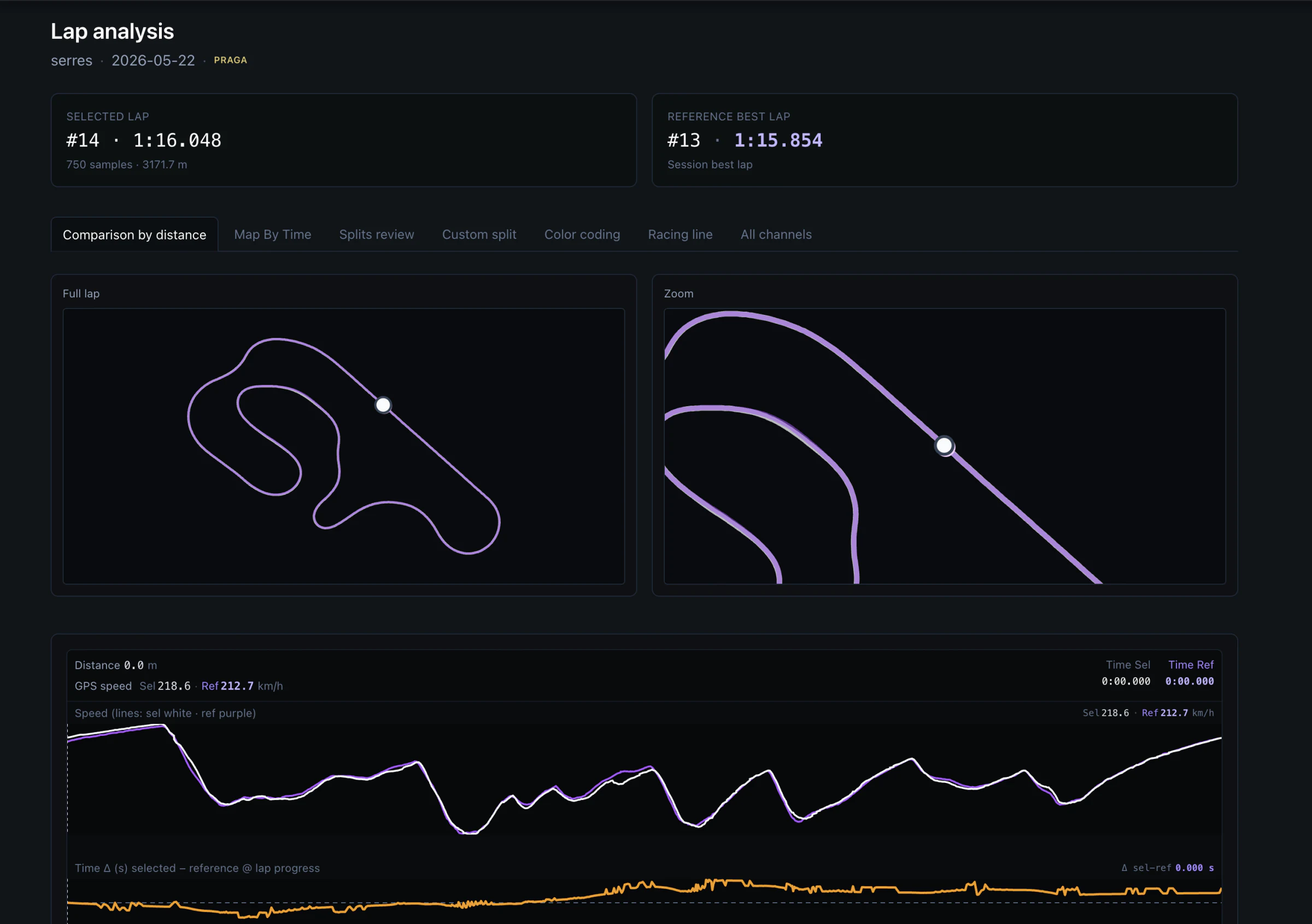

GridCore lap analysis comparing a selected Praga lap with its reference lap by distance — **Compare every meter**Speed, time delta, track position and every input stay aligned by distance.

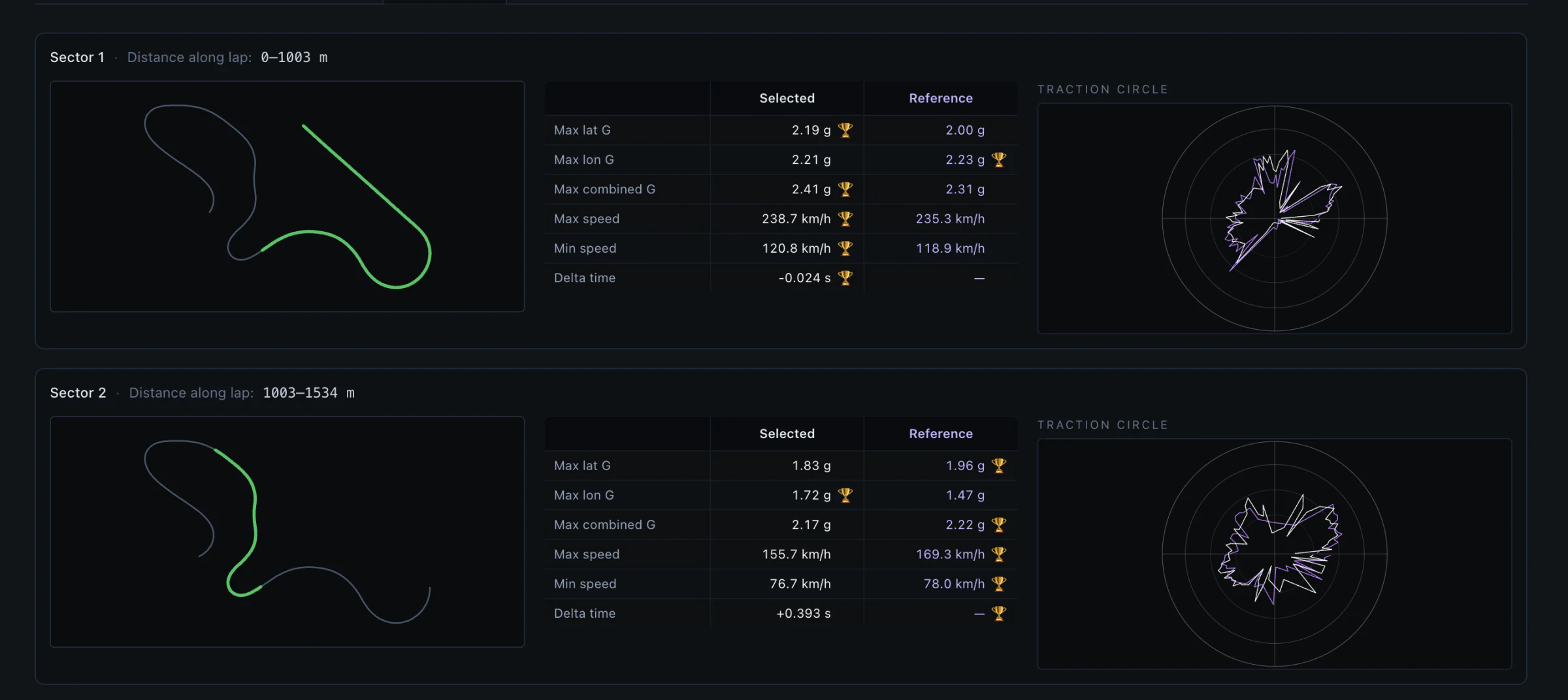

GridCore sector review with track segments, comparison table and traction circles — **Sector coaching**See who wins each sector, where the grip went, and exactly how much time is available.

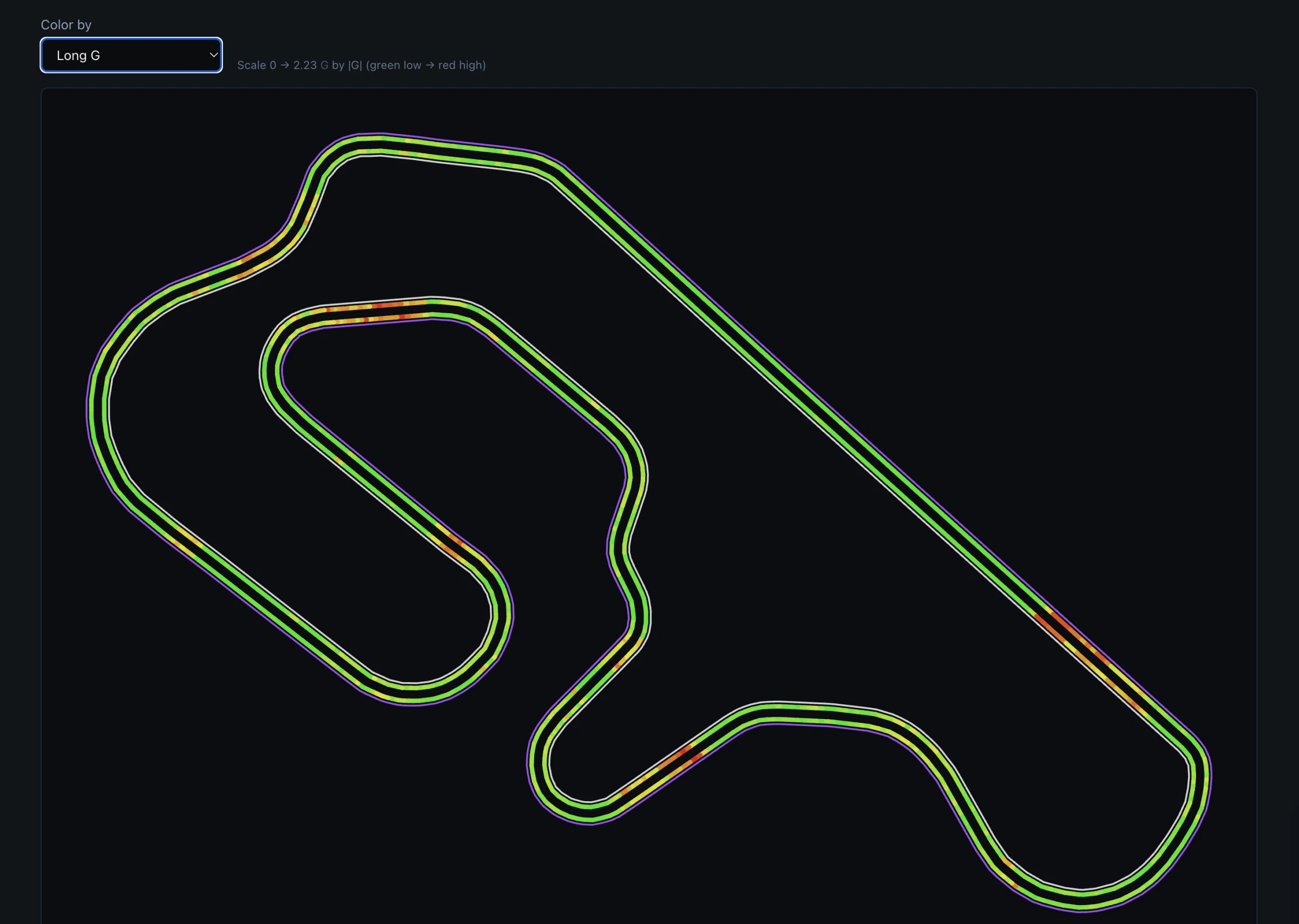

GridCore track map color-coded by longitudinal G — **Color-code the track**Analyze your braking points and intensity. Map acceleration, lateral G, or any other channel directly onto the racing line.

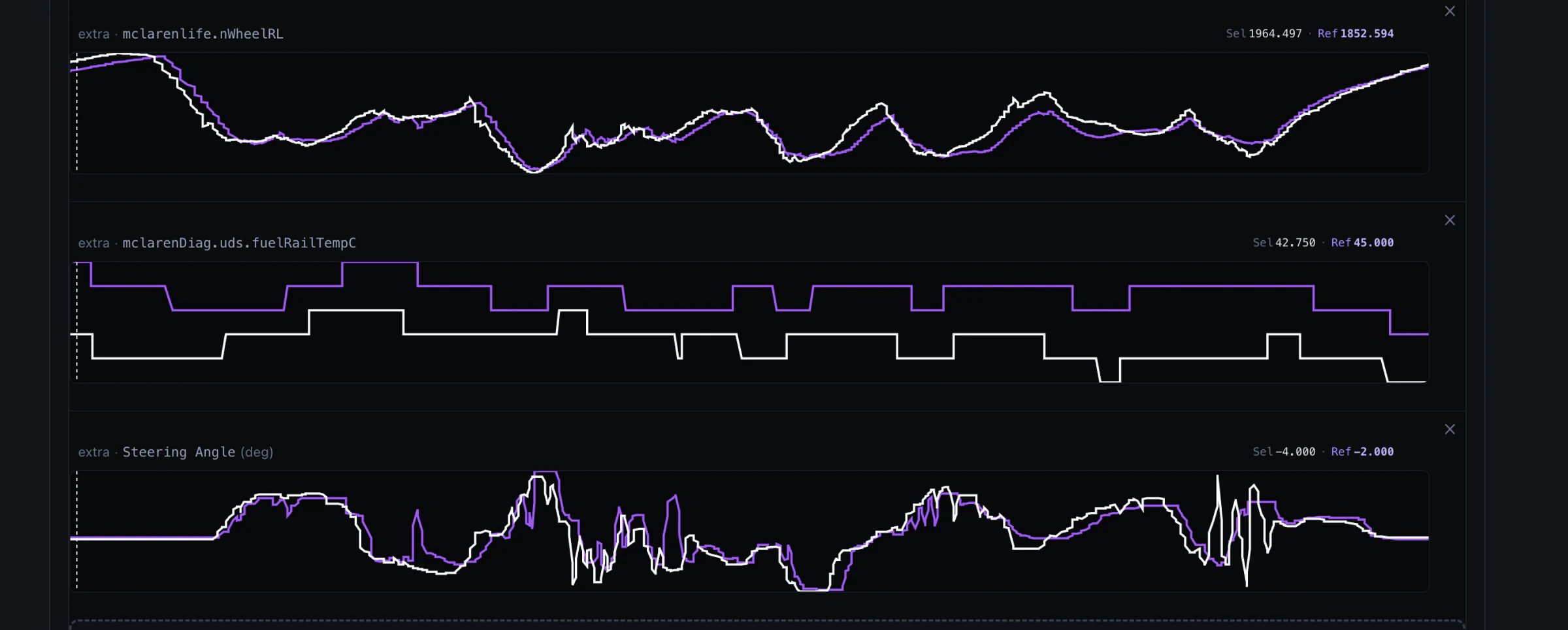

GridCore custom channel charts comparing wheel speed, fuel rail temperature and steering angle — **Any channel, side by side**Compare wheel speed, diagnostics, steering angle and custom ECU channels with no fixed template.

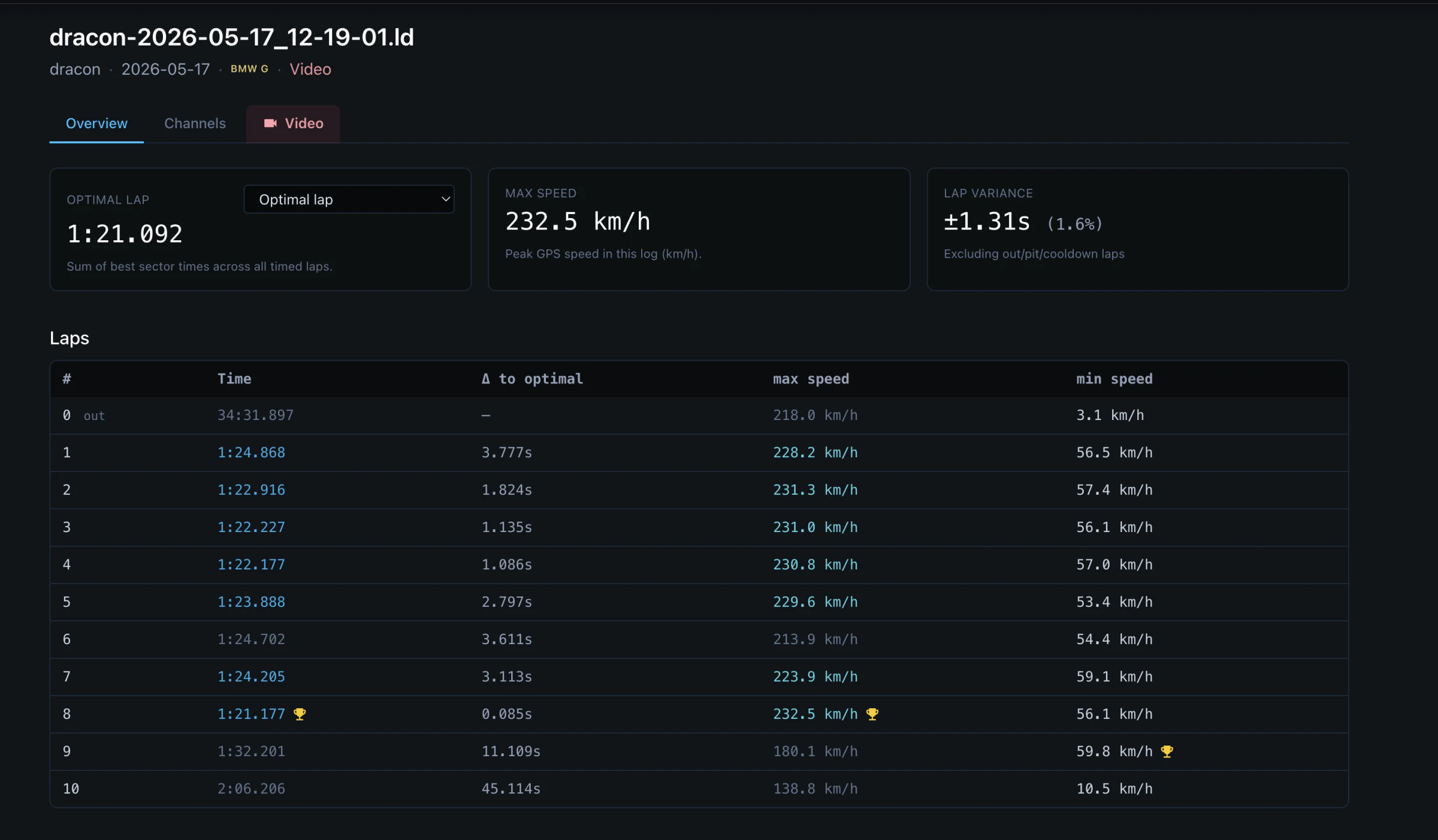

GridCore session overview showing optimal lap, maximum speed, lap variance and lap table — **The session at a glance**Optimal lap, consistency, peak speed and every timed lap. Ready as soon as the car stops.

04 / Data logging and dash

Extremely configurable dashboard.

Bring the car, driver and auxiliary sensors into one view. Configure the dashboard around what matters, log every channel and catch faults before they cost a session.

CANOBD2 / UDSBLEMQTTTPMS

GRIDCORE DASHLive delta to your best

01 / 08

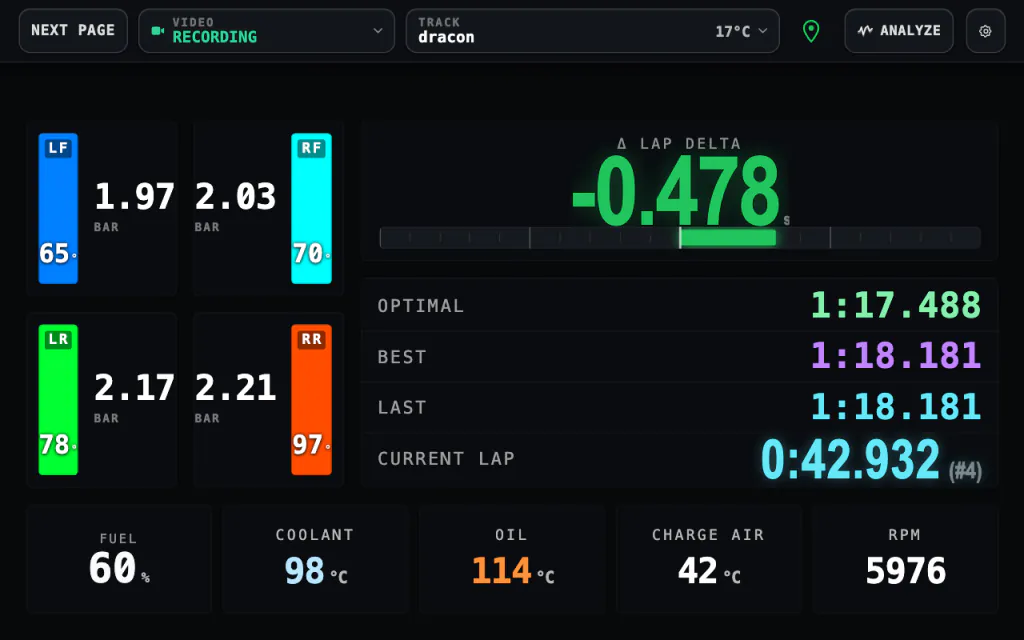

GridCore dashboard mid-lap: lap delta -0.478 s, optimal, best, last and current lap times, four tire tiles with pressures and temperatures, fuel, coolant, oil, charge air and RPM — Lap delta, optimal, best and current lap, tire pressures and temperatures, and engine vitals on one screen.

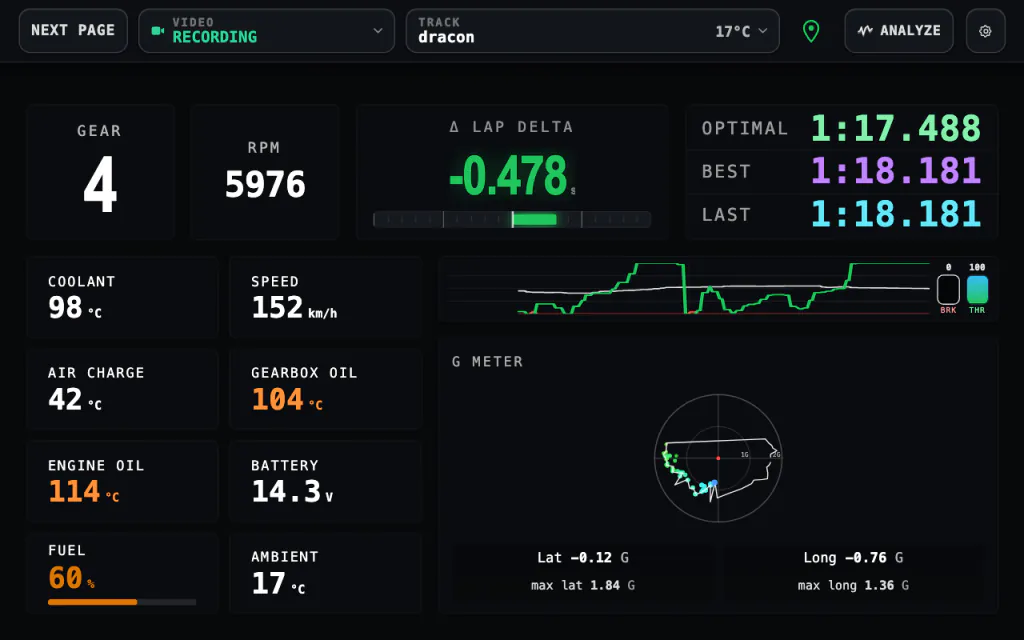

GridCore instrument cluster: gear, RPM, lap delta, optimal, best and last lap, coolant, speed, charge air, gearbox oil, engine oil, battery, fuel and ambient temperature, throttle and brake trace and a G meter — Gear, RPM and delta up top, every temperature the car reports, your throttle and brake trace and the G meter.

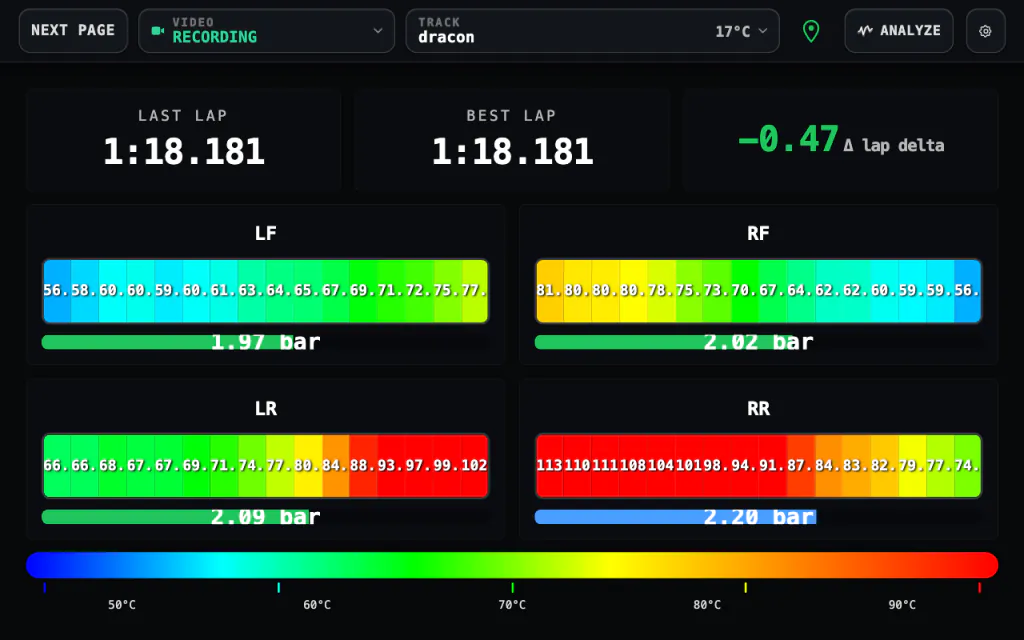

GridCore tire page showing 16 infrared temperature points across each tire's tread, tire pressures and the lap delta — Sixteen infrared points per tire show camber, pressure and grip balance while you drive.

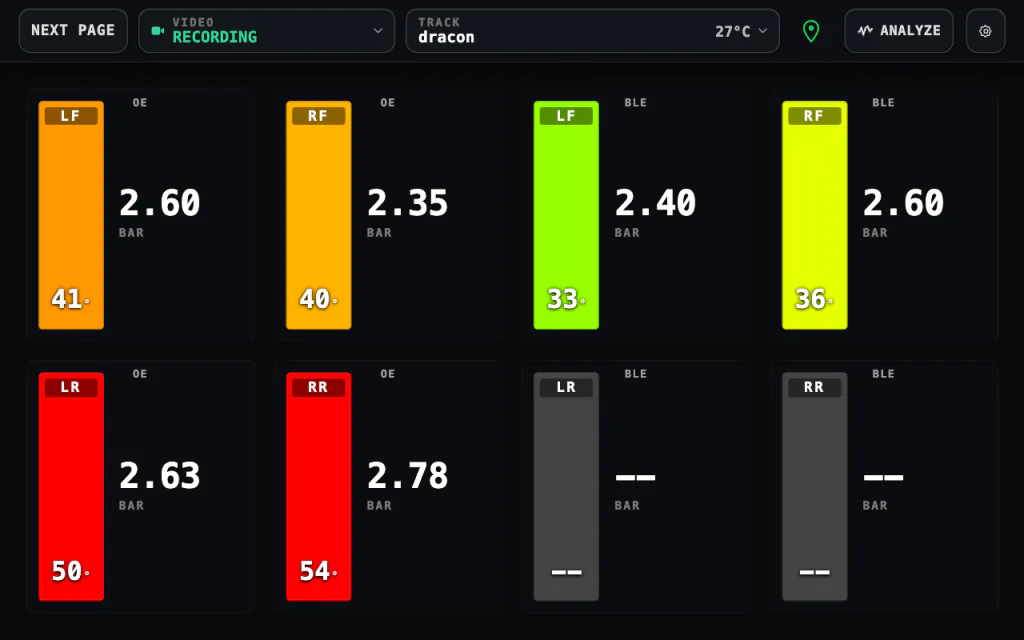

GridCore tire page comparing the McLaren's factory tire sensors, read over CAN, with add-on Bluetooth tire sensors: pressures and temperatures per corner — The car's own tire sensors over CAN next to add-on Bluetooth sensors, so you can check one against the other.

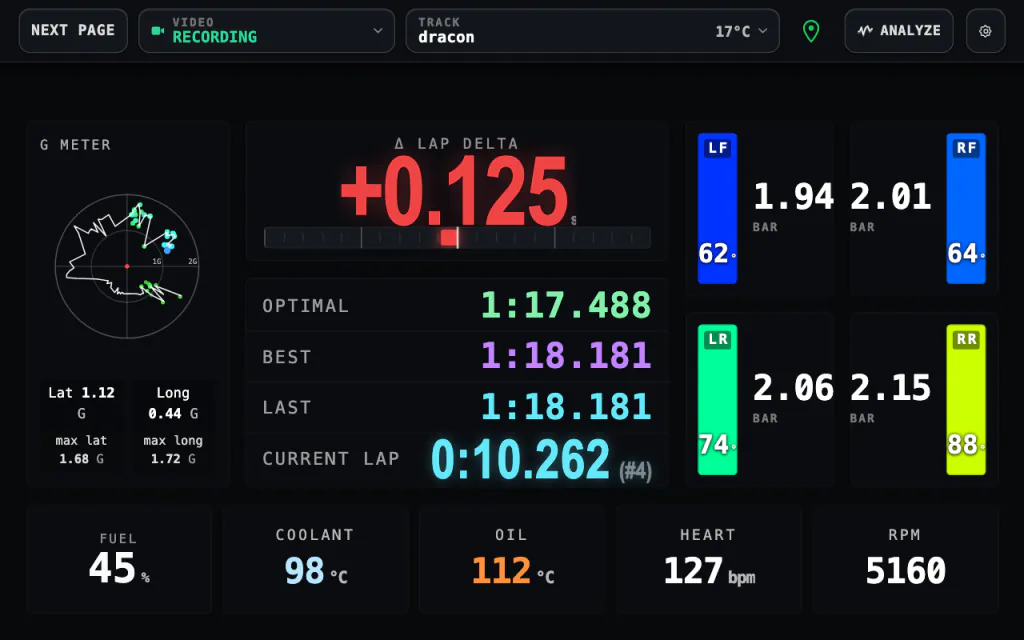

GridCore dashboard with the G meter on the left, tire tiles on the right, the lap delta and lap table in the middle, and driver heart rate in the bottom strip — G meter on the left, tires on the right, driver heart rate along the bottom. Arrange it from the dashboard's settings.

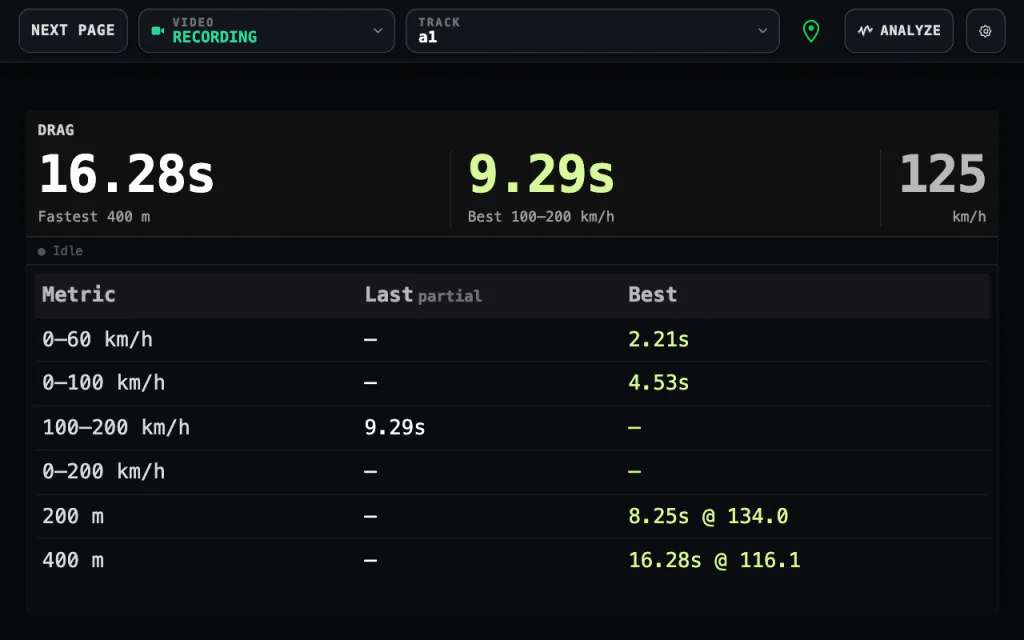

GridCore drag page: 0-60 km/h 2.21 s, 0-100 km/h 4.53 s, 100-200 km/h 9.29 s, 200 m and 400 m times — 0–100, 100–200 km/h, 200 m and 400 m, timed automatically from GPS on every pull.

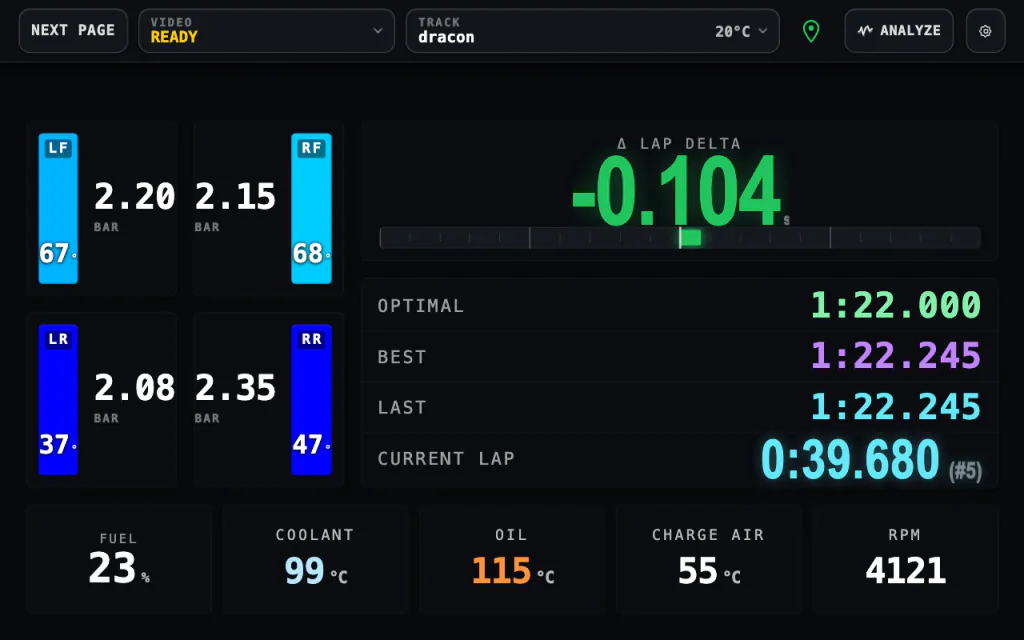

GridCore dashboard on a BMW over OBD2 with Bluetooth tire sensors: lap delta -0.104 s, lap times, tire tiles and engine data — The same dashboard on a road car over OBD2, with Bluetooth tire sensors.

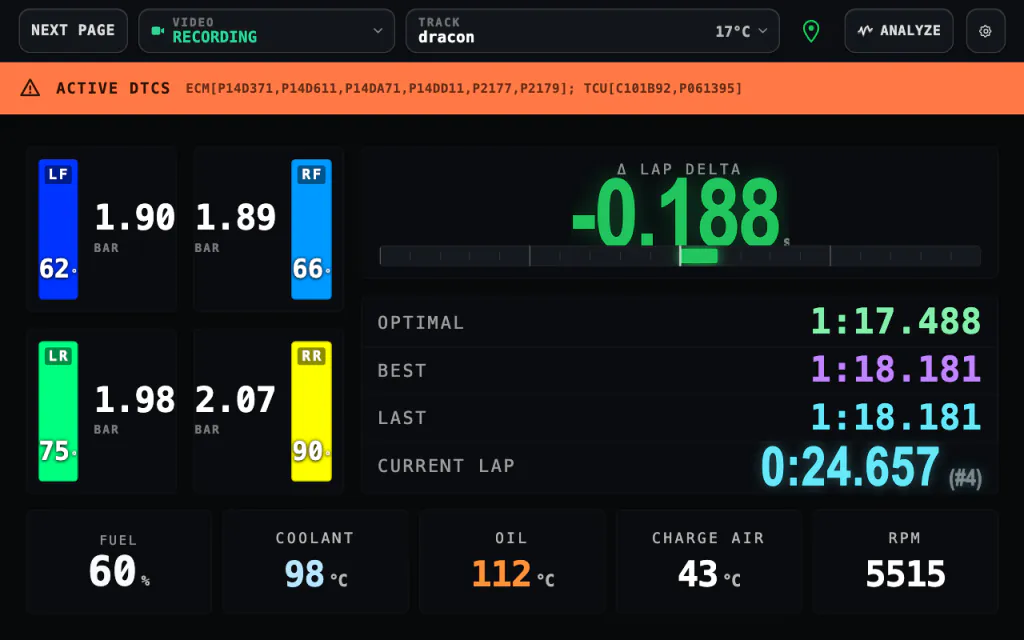

GridCore dashboard with an active fault code banner listing engine and gearbox codes above the lap delta — Fault codes show up the moment the car stores them, labelled with the module that raised them.

Infinite channels

ECU, GPS, accelerometer, tire pressure and temperature, driver sensors and custom calculations.

Live diagnostics and warnings

Read DTCs, monitor OBD2 and custom UDS data, and optionally clear known errors automatically.

Open data

Analyze in GridCore or export MoTeC .ld files for i2, HackTheTrack, laplift.app and your existing workflow.

05 / Video, built in

Built-in video
with overlay.
Ready to share.
Even live.

NewNow with nighttime support

The camera comes in the box, and recording starts and stops with your session — no buttons to remember. The overlay is drawn onto the video while you drive, so there’s no render step, no export, and no lining footage up with data afterwards. With a connection, your coach or the pit wall can watch it live.

What the overlay shows

Live delta, best and last lap
Throttle, brake, clutch and steering
Speed, gear and the G-meter with its trail
Tire temperatures and pressures
Coolant and oil temperature
Driver heart rate

It shows what your car and sensors provide, and leaves out what they don’t.

Full telemetry

01 / 02

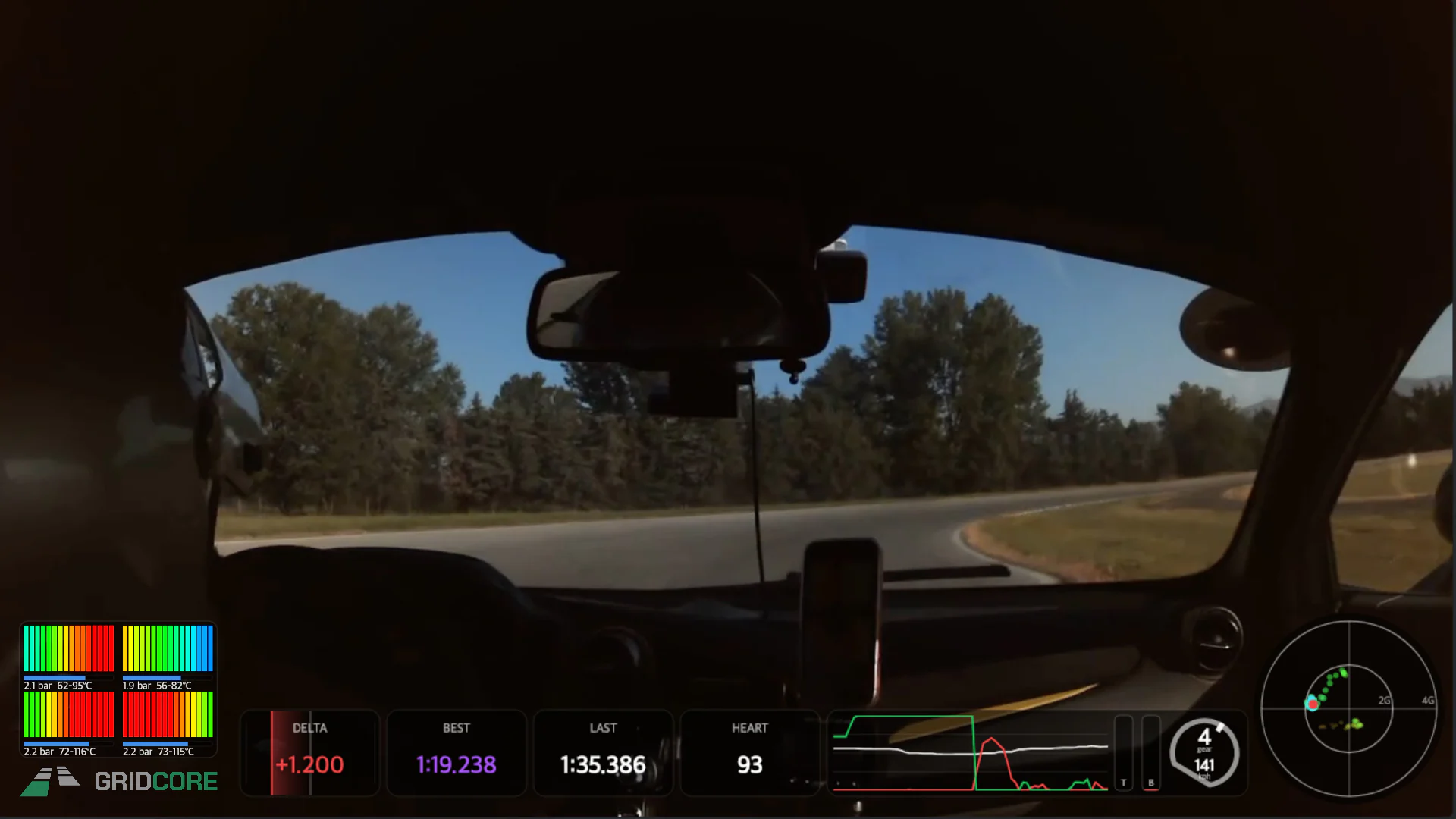

Interior driving video with tire, lap timing, inputs and G-force overlay — **Full telemetry**Temperatures across each tire, a trace of your inputs, lap times, delta and G

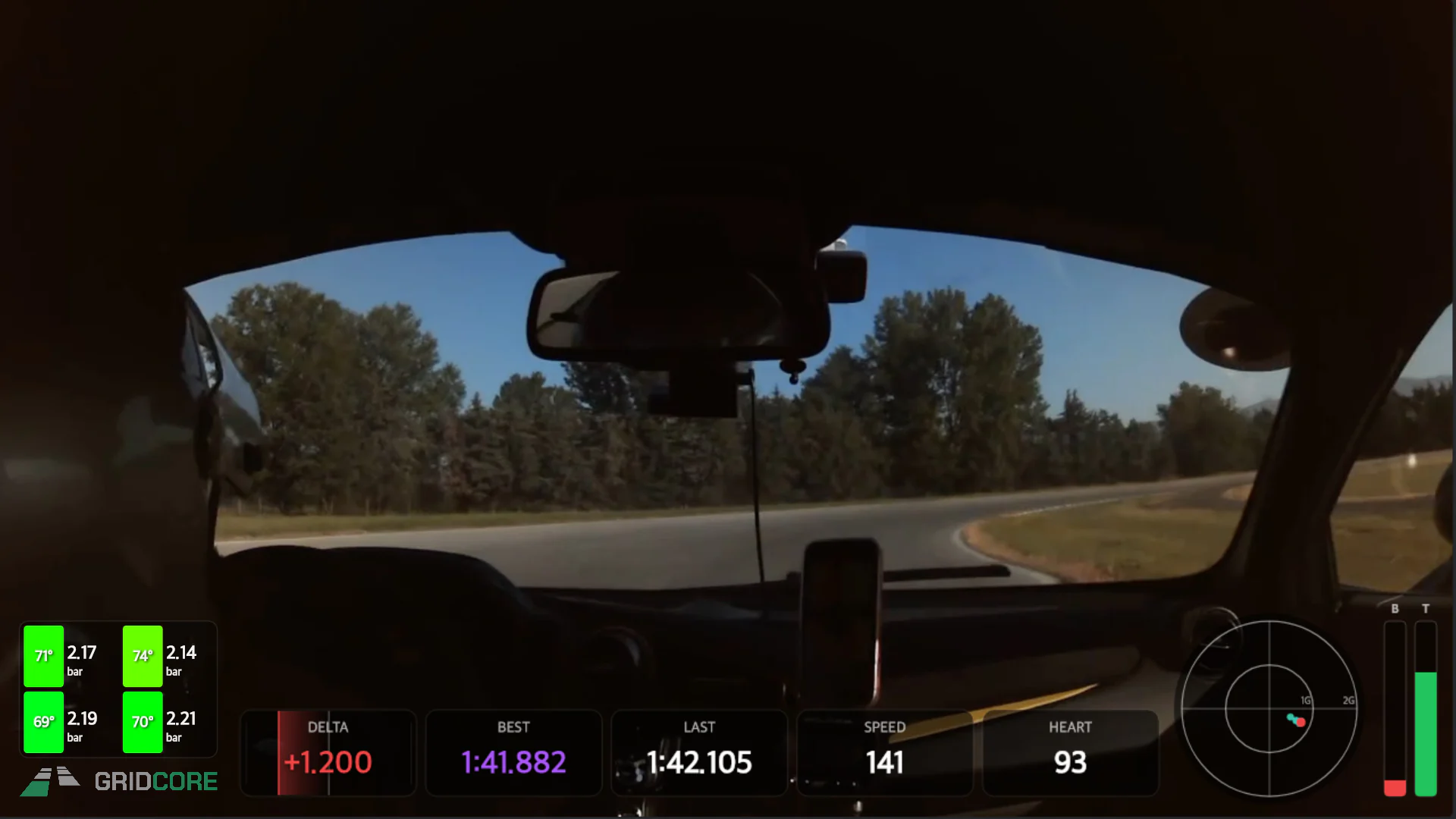

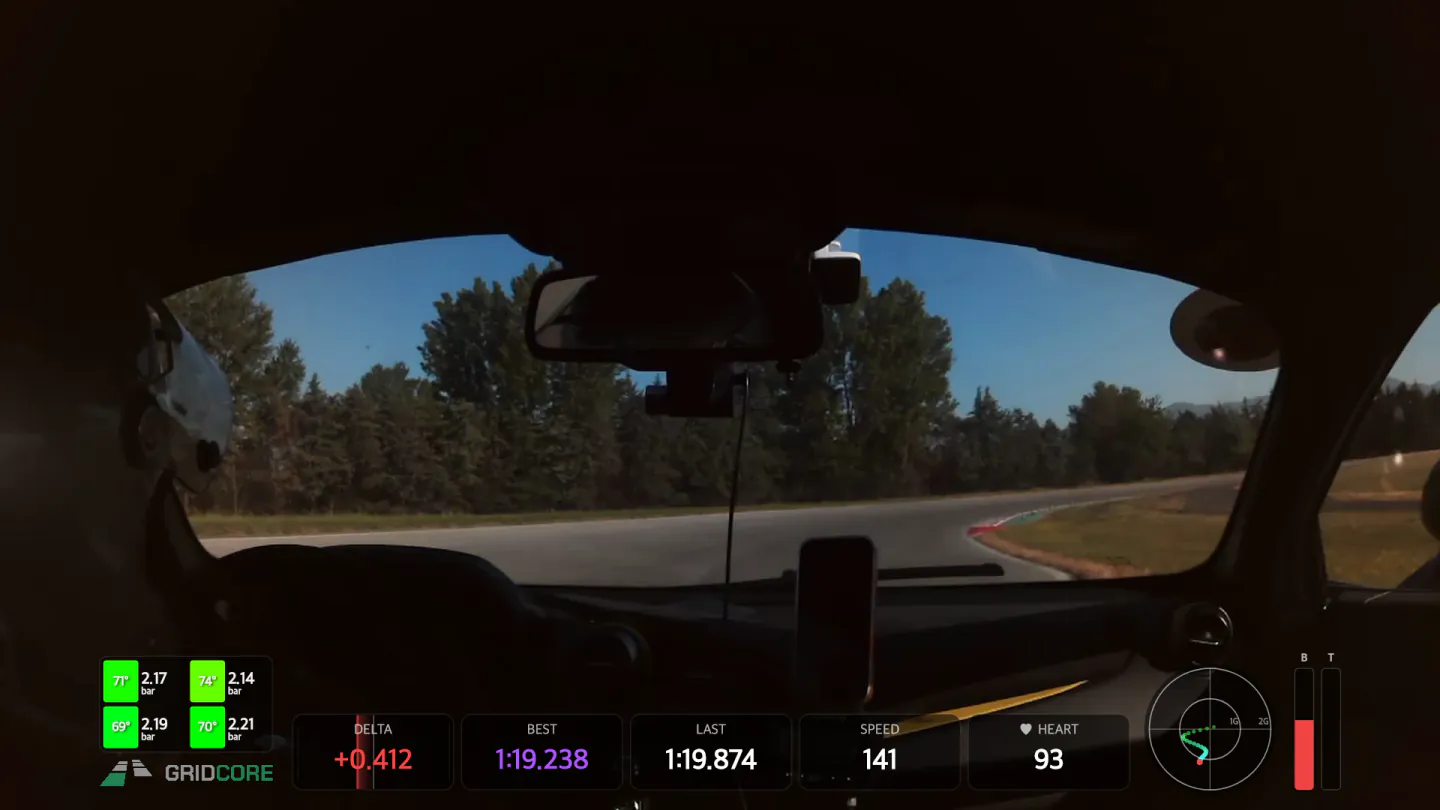

Interior driving video with classic GridCore telemetry overlay — **Classic overlay**Delta, best and last lap, speed, heart rate, tire temperature and pressure, G-meter, brake and throttle

Use the included camera, and add more.
Record on a phone at the same time, or bring in footage from a GoPro or Garmin dash cam and GridCore lines it up with your session.

iPhone

Android

06 / GridCore Cloud

Immediate cloud sync & live video.

Built-in 4G / LTE keeps logs, live telemetry and video moving. Review a session remotely while it’s still happening, coach from pit wall, and stop thinking about file transfers.

No need to manually download sessions — telemetry and video kept together and auto-synced
Live video streaming & data.
Near real-time lap and session sync
Remote dashboard and coaching access

Frequently asked questions.

How simple is it to set up?

Place the device, connect optional power and optional CAN/OBD2 via the provided harness, and you’re set.
GridCore can work as a standalone GPS lap timer and logger; every additional connection simply unlocks more channels.

How does it compare to AiM?

GridCore is designed to be much more modern, cloud-first with built-in 4G / LTE, and web-enabled, so you don't have to bother downloading sessions. The coaching app is web-based and cross-platform, making it easy to access useful insights even if you're not a racing engineer.

Also, GridCore comes with an included camera. No additional products are required.

How does it compare to RaceBox?

GridCore is not a direct RaceBox competitor. It is a complete motorsport stack rather than only a timing tool. GridCore can also use RaceBox as an auxiliary GPS over Bluetooth.

Which ECUs and cars does it support?

Any modern car: via OBD2
Advanced CAN data: Porsche, McLaren, BMW G-Series, Praga and more upon request
Any other CAN protocol: can be added in seconds with a .dbc file
Motorsport ECUs: AEM, Haltech, Link, MegaSquirt, MoTeC M1, MaxxECU and Pectel SQ6

What data does it log?

GridCore logs any data you want, from internal channels like GPS position, speed, accuracy, time, to IMU data and temperature, to vehicle data like throttle, brake pressure, coolant temperature, etc.

By default, internal channels are logged at 10 Hz, but raw CAN logs are preserved automatically so you get whatever data frequency the vehicle is transmitting.

What integrations does it have?

Data export: MoTeC .ld
Extra cameras: GoPro, Garmin dash cams, and phone recording on iOS or Android
Tire monitoring: IZZE IR TTPMS, ALS Tire BLE, McLaren OEM TPMS, Chinese BLE TPMS, and generic CAN TPMS receivers
Auxiliary / backup GPS and IMU: RaceBox
Sim racing: SimHub / MQTT

Why such a wide TPMS support?

GridCore supports a wide variety of TPMS systems over CAN or Bluetooth: 16-channel infrared tread temperatures, internal and external sensors, and more.

The reason is that it started as a tire monitoring dashboard, inspired by the lack of flexibility of other telemetry and dash systems.

Does it need an ECU connection?

No. GPS timing, track detection, video and core logging work without an ECU. CAN, OBD2, Bluetooth and sensors are optional ways to add richer data.

Can I use this to stream live video?

Yes. With a connection — the built-in mobile data or a phone hotspot — the video streams to your GridCore account while you drive, overlay included, so a coach or the pit wall can watch from anywhere.

Everything is also recorded on the device, so a patchy signal never costs you the footage.

Does it record at night?

Yes. Nighttime recording is supported, so evening track days and night stints get the same video and overlay as a daytime session.

Do I need an internet connection or a phone hotspot?

No. The device works completely standalone. Hotspot or 4G / LTE only unlocks cloud sync, remote pit wall access, and live review options. Everything important is recorded locally.

What happens to my data?

Sessions are logged automatically in open MoTeC .ld plus raw formats. They're automatically cloud-synced so you can review them from any device via GridCore Analyze, or open them in MoTeC i2 Pro, laplift.app or similar tools.
